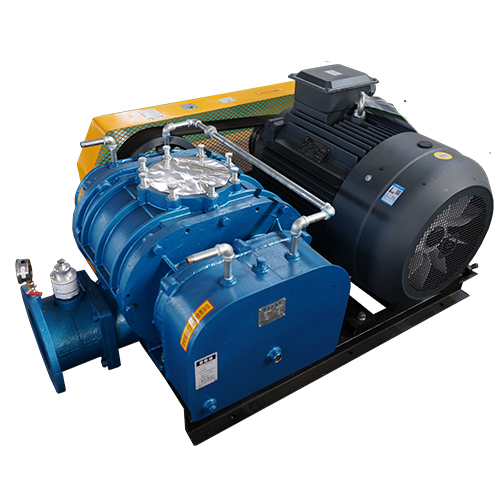

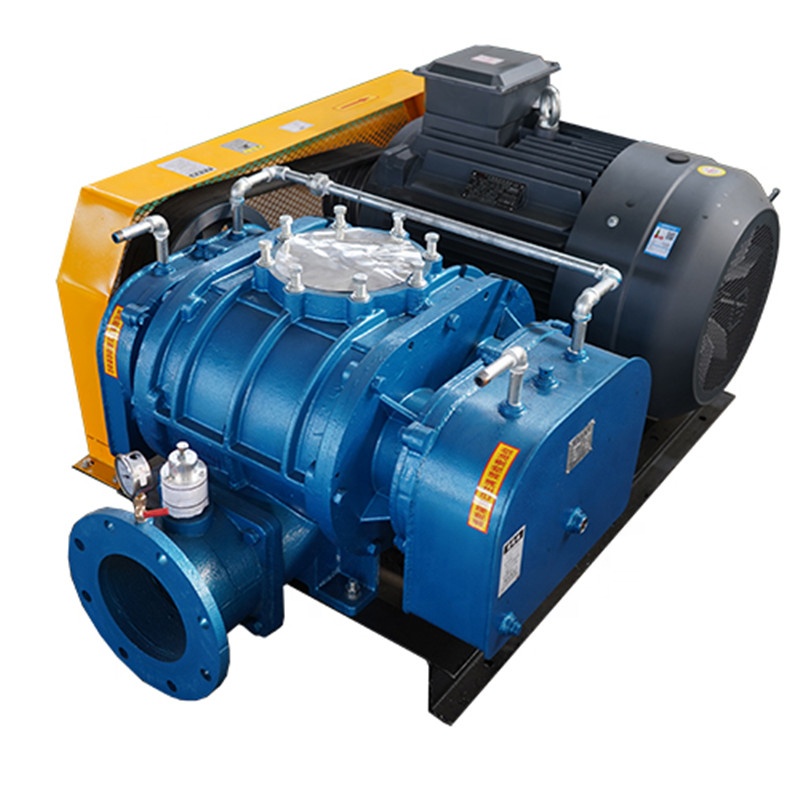

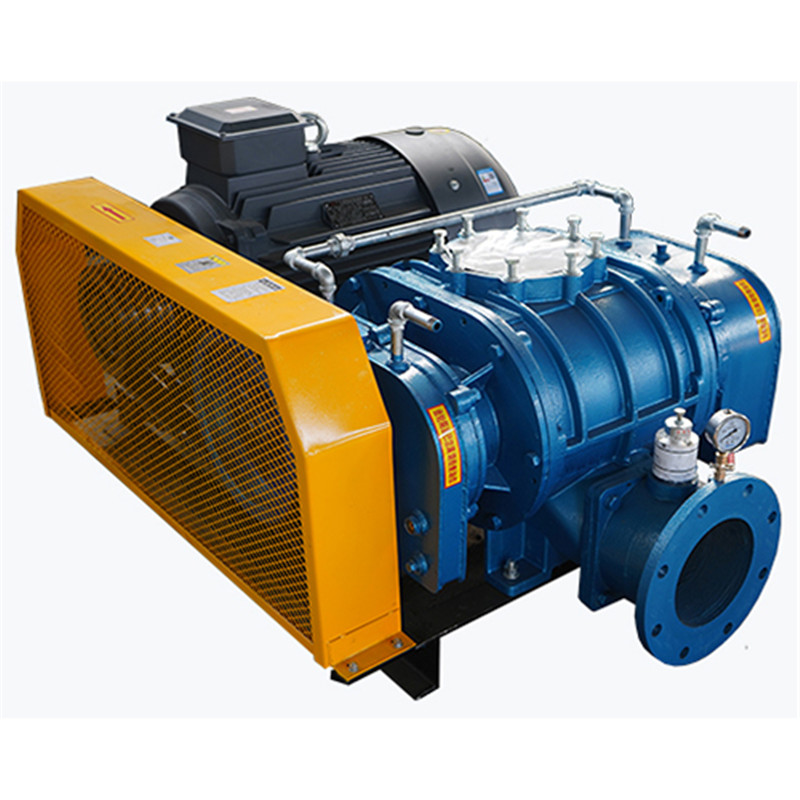

Water Cooled Dual Oil Tank Three Lobe V-Belt Roots Rotary Blower

Yinchi's high quality Water Cooled Dual Oil Tank Three Lobe V-Belt Roots Rotary Bloweran efficient three blade belt connected structure.Compared with Roots blower, water-cooled Roots blower can effectively cool key components such as bearings and gears after installing a water-cooled system. After the blower is running, the temperature difference between adding water cooling and not adding water cooling can reach about 10 degrees.

Model:YCSR series

Send Inquiry

Product Description

Water Cooled Dual Oil Tank Three Lobe V-Belt Roots Rotary Blowers from Yinchi supplier have the advantage of faster cooling speed, but there is a risk of icing in cold winter areas. Therefore, customers should carefully consider whether water cooling is required when selecting blowers, and pay attention to maintenance work during use. In winter, circulating water should be drained to avoid icing and damage to the blower.

Place of Origin	China
Warranty	1 Year
Feature	Can be used normally under high pressure conditions, effectively cooling down
Connect type	Belt
Accessories	inlet and outlet silencers, motor, pressure gauge, relief valve, elastic joint, one-way valve, base, chain cover, belt, and pulley.

Water cooled Roots blower, as the name suggests, is a type of Roots blower that dissipates heat through a water-cooled circulation system, and its application fields are more extensive. When the pressure is not too high, the air-cooled Roots blower can meet the usage requirements. When the pressure exceeds 68kPa, a water-cooled circulation system needs to be installed, using a dual oil tank water-cooled Roots blower.
